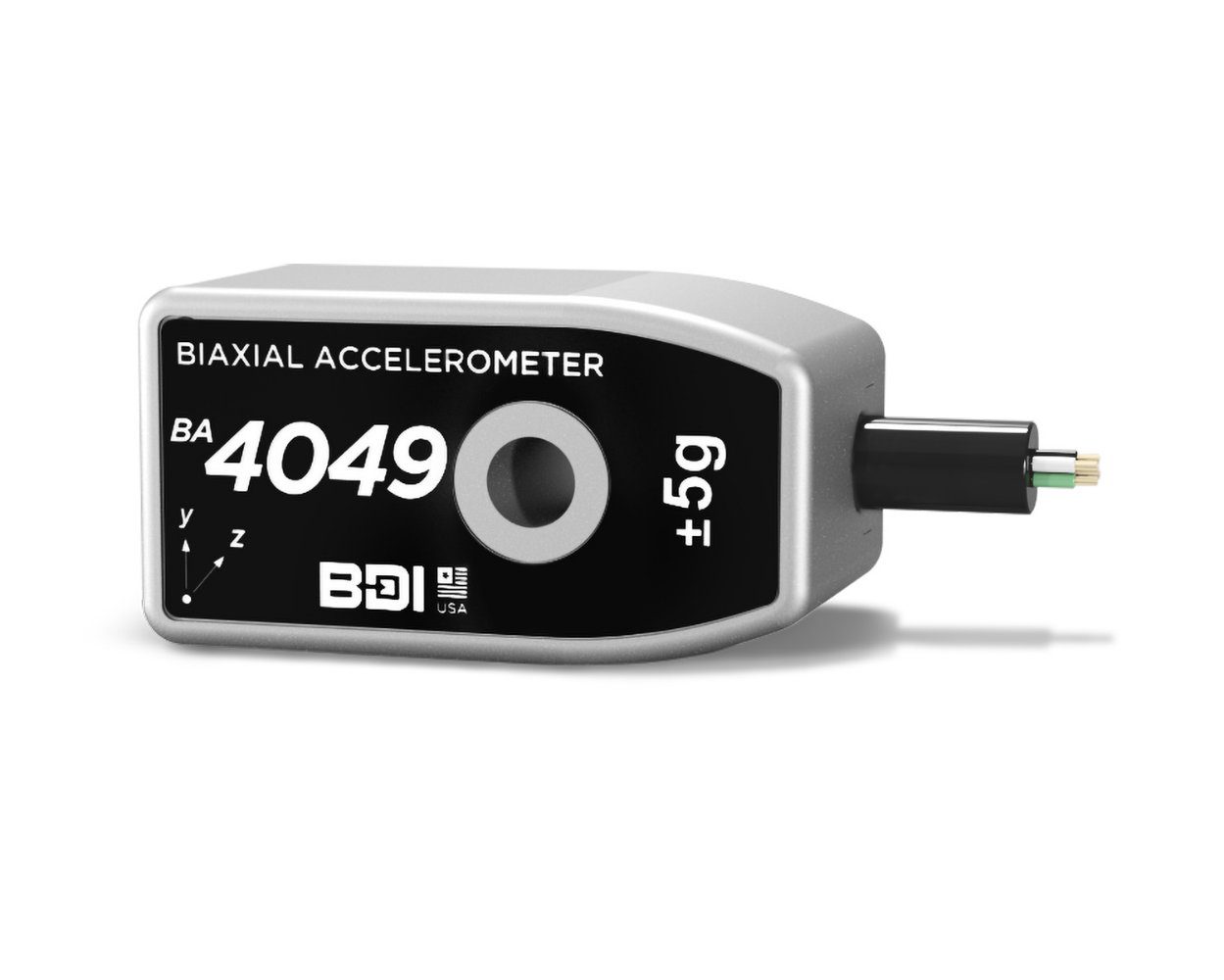

BDI BA1512-005 Biaxial Accelerometer Render

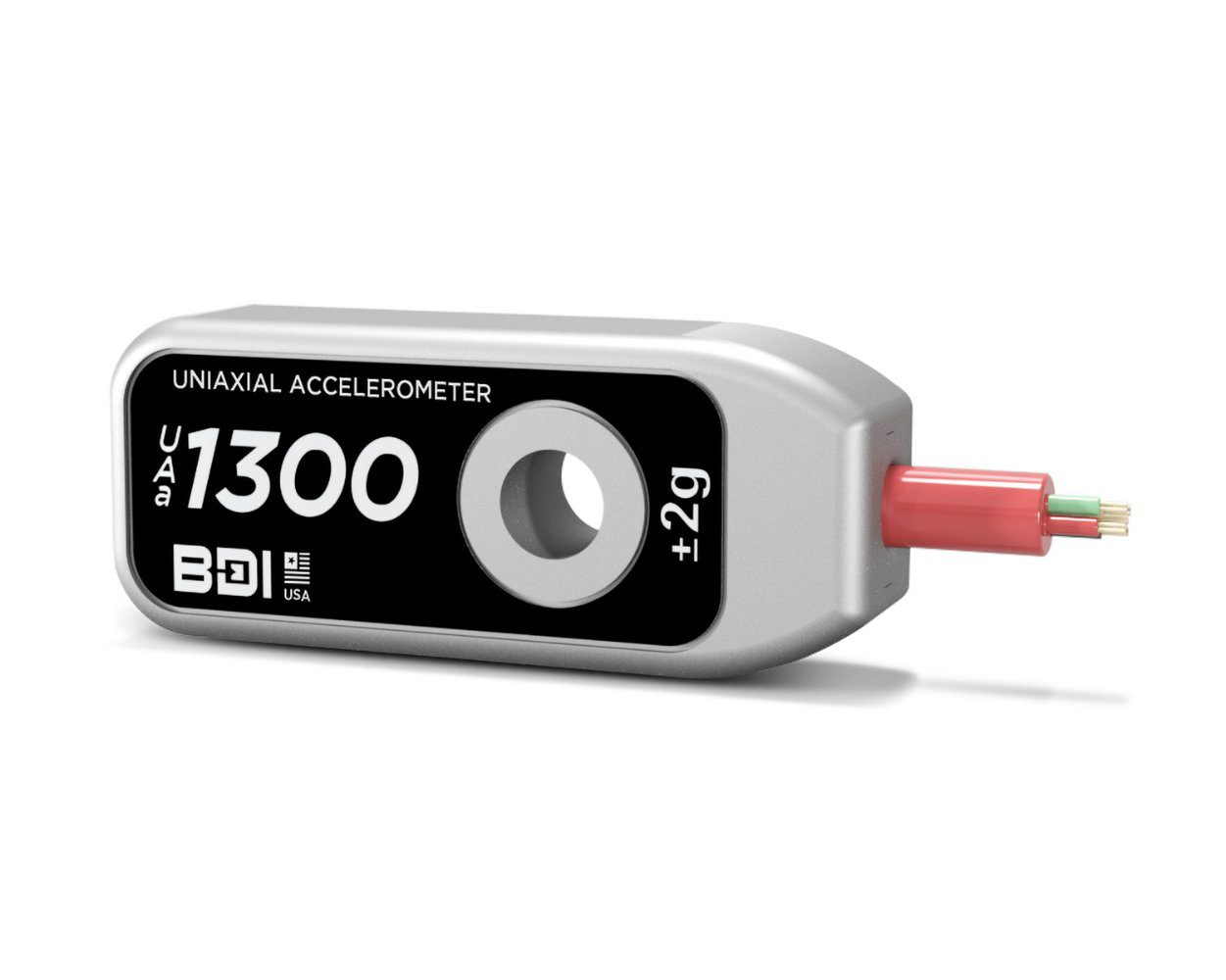

BDI UA1512-002 Uniaxial Accelerometer Render

BDI Accelerometer on Sensor Mounting Tab

Example bridge for accelerometer application

BDI Accelerometer mounted on cable to measure vibration.

BDI Accelerometers installed on lift span cables with Velcro straps.

BDI Accelerometers Installed on cables with zip ties.

BDI BA1512-005 Biaxial Accelerometer Render

window.tgpQueue.add('tgpli-6773470c7efec')<img src="https://bditest.com/wp-content/uploads/2019/05/A1521-Accelerometer-Biaxial-final-thegem-product-thumbnail.jpg" alt="BDI BA1512-005 Biaxial Accelerometer Render" class="img-responsive" >

BDI UA1512-002 Uniaxial Accelerometer Render

window.tgpQueue.add('tgpli-6773470c7eff9')<img src="https://bditest.com/wp-content/uploads/2019/05/A1521-Uniaxial-final-thegem-product-thumbnail.jpg" alt="BDI UA1512-002 Uniaxial Accelerometer Render" class="img-responsive" >

BDI Accelerometer on Sensor Mounting Tab

window.tgpQueue.add('tgpli-6773470c7f004')<img src="https://bditest.com/wp-content/uploads/2019/05/BDI-ACCELEROMETER-MOUNTING-TAB-VIEW-1-thegem-product-thumbnail.jpg" alt="BDI Accelerometer on Sensor Mounting Tab" class="img-responsive" >

Example bridge for accelerometer application

window.tgpQueue.add('tgpli-6773470c7f00f')<img src="https://bditest.com/wp-content/uploads/2019/05/IMG_0572-thegem-product-thumbnail.jpg" alt="Example bridge for accelerometer application" class="img-responsive" >

BDI Accelerometer mounted on cable to measure vibration.

window.tgpQueue.add('tgpli-6773470c7f019')<img src="https://bditest.com/wp-content/uploads/2019/05/IMG_7077-thegem-product-thumbnail.jpg" alt="BDI Accelerometer mounted on cable to measure vibration." class="img-responsive" >

BDI Accelerometers installed on lift span cables with Velcro straps.

window.tgpQueue.add('tgpli-6773470c7f024')<img src="https://bditest.com/wp-content/uploads/2019/05/BohBro_LA_LiftSpanCables-010-thegem-product-thumbnail.jpg" alt="BDI Accelerometers installed on lift span cables with Velcro straps." class="img-responsive" >

BDI Accelerometers Installed on cables with zip ties.

window.tgpQueue.add('tgpli-6773470c7f02f')<img src="https://bditest.com/wp-content/uploads/2019/05/746-thegem-product-thumbnail.jpg" alt="BDI Accelerometers Installed on cables with zip ties." class="img-responsive" >

A1512 Accelerometer

The A1512 accelerometer has been designed for dynamic structural testing in tough field conditions. These accurate, rugged, and fully-weatherproofed integrated MEMS sensors can be used from zero to medium frequency applications that require low noise and reliable long-term stability.

Available in uniaxial, biaxial, and triaxial configurations with ±2g, ±5g, ±10g, ±25g and ±50g sensitivity options. The sensors are made-to-order with your choice of cable length. An amplified version, the A2512, is also available for cable lengths over 300ft.

Each model can be installed very quickly and securely through the use of our various mounting options and accessories.

Request a Quote

FEATURES

Completely reusable
Designed to exceed IP67
Nitrogen gas damped
High stability
Low power requirements
Various mounting options available
Industrial cable, custom lengths
N.I.S.T. traceable calibration available
High differential output (± 2.0 VDC)
Responds from rated frequency down to 0 Hz

APPLICATIONS

Cable force measurements
Structure vibration testing & monitoring
Earthquake monitoring/detection
Structure modal analysis
Vehicle dynamics
Impact detection
Long lead cable (up to 1,500ft/460m)

DIMENSIONS

UNIAXIAL ACCELEROMETER

BDI Uniaxial Accelerometer Technical Drawing

BIAXIAL & TRIAXIAL ACCELEROMETER

BDI Accelerometer Technical Drawing

Specifications – A1512 ACCELEROMETER

UNIAXIAL MODELS	UA1521-002	UA1521-005	UA1521-010	UA1521-025	UA1521-050	UA1521-100
BIAXIAL MODELS	BA1521-002	BA1521-005	BA1521-010	BA1521-025	BA1521-050	BA1521-100
TRIAXIAL MODELS	TA1521-002	TA1521-005	TA1521-010	TA1521-025	TA1521-050	TA1521-100
RANGE (g)¹	±2	±5	±10	±25	±50	±100
FREQUENCY RESPONSE [NOMINAL, 3dB] (Hz)	0-300	0-400	0-600	0-900	0-1200	0-1400
DIFFERENTIAL SENSITIVITY (mV/g)	1000	400	200	80	40	20
EXCITATION VOLTAGE	+5.0 Vdc ±5%
OUTPUT	±2.0 Vdc Full Scale Output
OPERATING TEMPERATURE²	-58° to +176 °F (-50° to +80 °C)
SIZE UNIAXIAL: BIAXIAL: TRIAXIAL:	0.80 in x 1.95 in x 0.49 in (20.3 mm x 49.5 mm x 12.4 mm) 2.0 in x 1.01 in x 1.07 in (50.8 mm x 26.8 mm x 27.2 mm) 2.0 in x 1.01 in x 1.07 in (50.8 mm x 26.8 mm x 27.2 mm)
HOUSING	Machined 6061 Aluminum Alloy
CORROSION RESISTANCE	Hard Anodized Clear (MIL-A-8625 Type III)
WEATHER PROTECTION	Designed to exceed IP67

¹ Higher ranges are available, contact BDI for more details
² Temperature limit based on instrumentation cable operating temperatures, call BDI for wide temperature range cable options.
