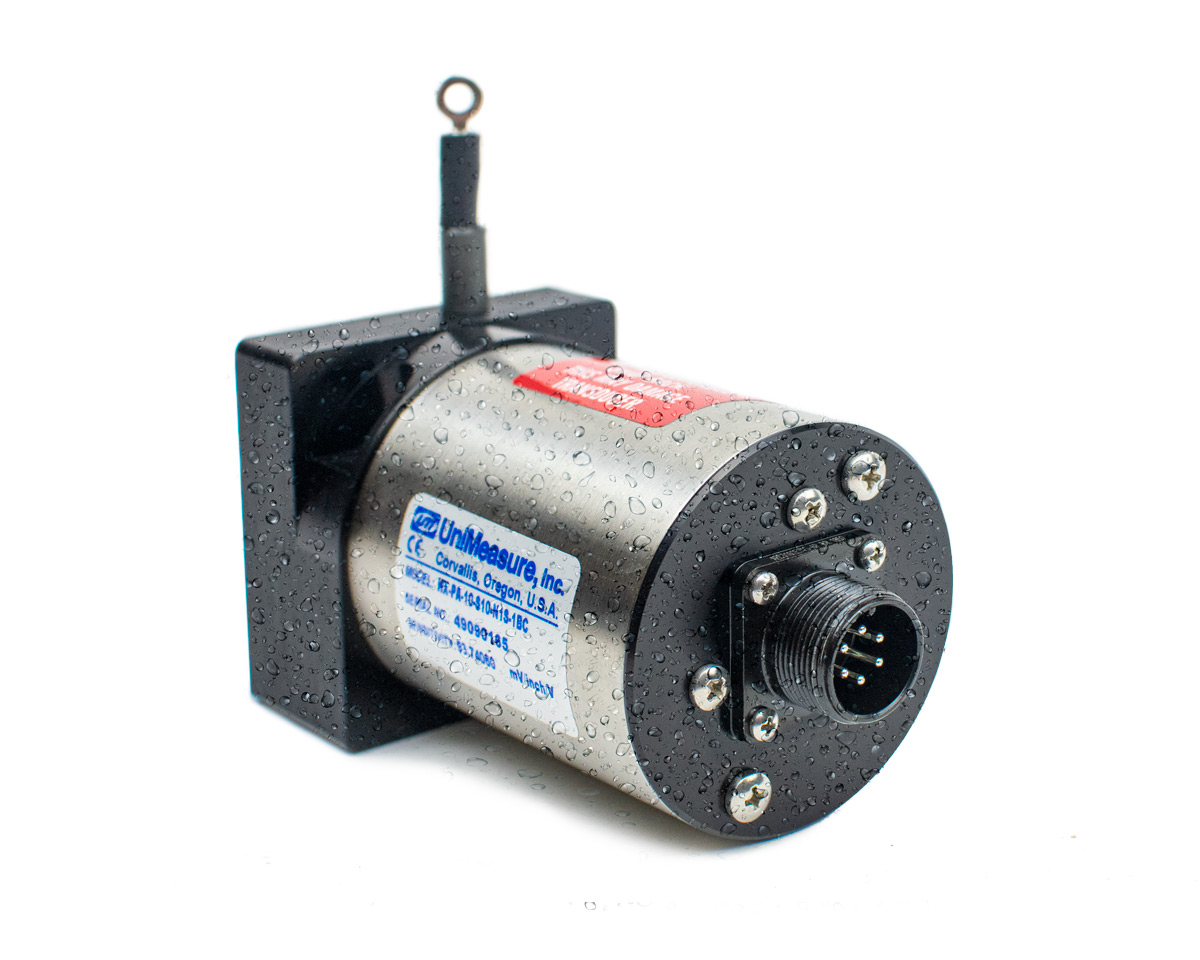

Cable Potentiometer

Name: Cable Potentiometer
SKU: CPOT
Availability: InStock

Cable Potentiometer

The Cable Potentiometer (CPOT) is designed for measuring large displacements on structures with moving components such as lift gates or moveable bridge spans.

Output Type

Range

Clear

Select Units

Feet

Meters

Cable Length (+$2.10)

Max length is 30 meters, please enter 30 or less

SKU: CPOT Categories: Displacement, Sensors

Accessories

Contact Us With Any Questions

Bridge Diagnostics, Inc. ensures non-discrimination in all programs and activities in accordance with Title VI of the Civil Rights Act of 1964. If you need more information or special assistance for persons with disabilities or limited English proficiency, contact our office at +1.303.494.3230 Ext. 116

Tel +1.303.494.3230

Type	Cable Potentiometer
Ranges	1.0 to 80 in
Excitation	+1 to +30V AC or DC
Output	0 to (50% Excitation Voltage)
Linearity	±0.3% to ±0.15%
Temperature Range	-40° to +203 °F (-40° to +95 °C)
Size	2.9 in x 4.5 in x 4.75 in (74mm x 115mm x 121mm)
Weatherproof	IP68
