Thermistor Temperature Tree

Name: Thermistor Temperature Tree
SKU: TT-TS-02-04
Availability: InStock

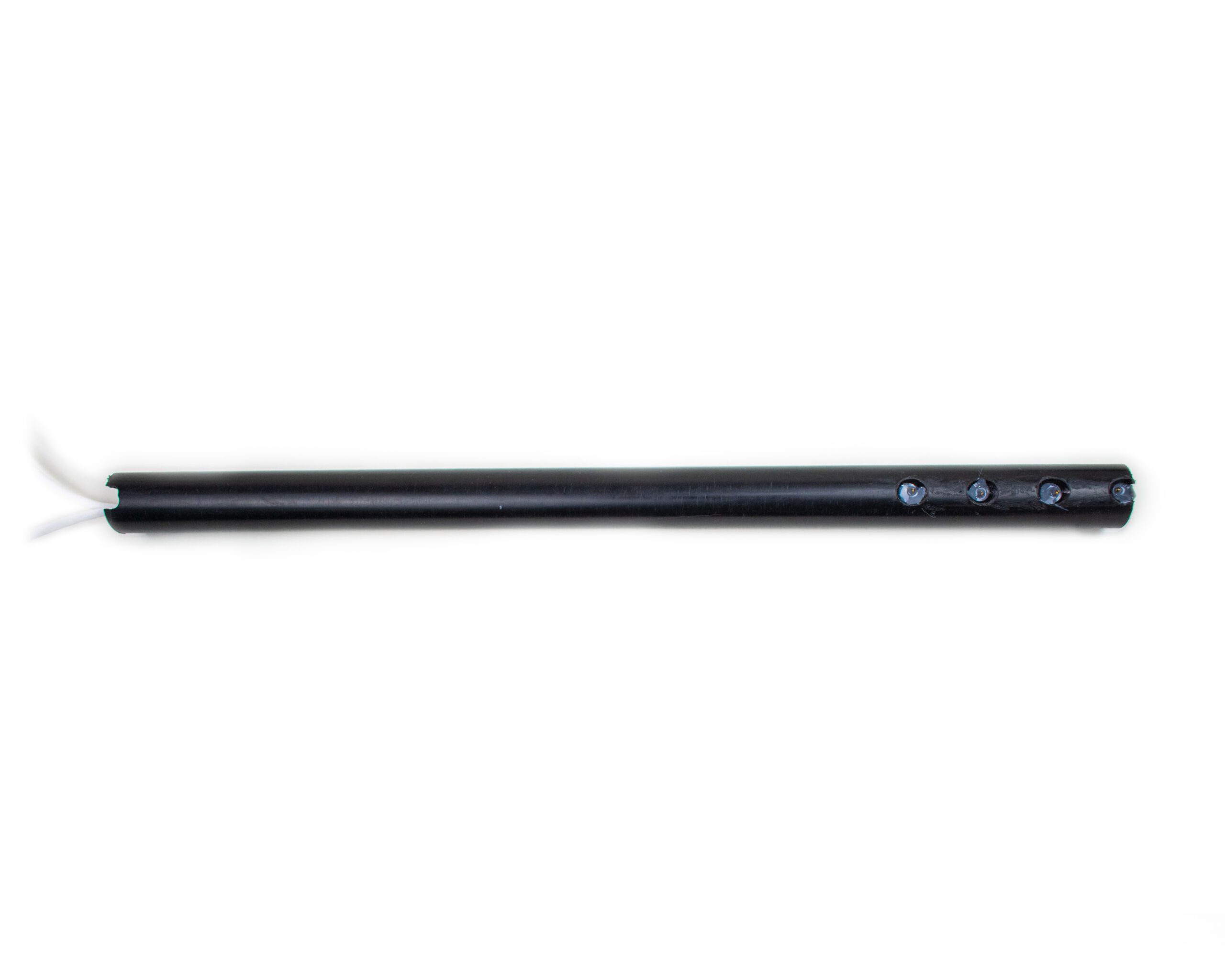

Thermistor Temperature Tree

Temperature tree measurements through pavement and soil layers provide a method for determining thermal gradients that can affect flexural strains and material stiffness. By providing fixed spacing of the thermal measurements in specific layers in pavements and soils help to better model pavement-soil interaction and/or effects from thermal differences of pavement surfaces.

Number of Measurement Depths

Clear

Select Units

Feet

Meters

Cable Length (+$2.10)

Max length is 30 meters, please enter 30 or less

SKU: TT-TS-02-04 Categories: Sensors, Temperature

Accessories

Contact Us With Any Questions

Bridge Diagnostics, Inc. ensures non-discrimination in all programs and activities in accordance with Title VI of the Civil Rights Act of 1964. If you need more information or special assistance for persons with disabilities or limited English proficiency, contact our office at +1.303.494.3230 Ext. 116

Tel +1.303.494.3230

MODEL	TT-TS-### (THERMISTOR)	TT-TC-### (THERMOCOUPLE)
MEASUREMENT	2, 3, or 4 (user-specified). Can be customized for additional measurement points or telescoping for use in multiple lifts.
MEASUREMENT DISTANCES¹	10kOhm – NTC Type Thermistor
TYPE	volts excitation/in	Thermocouple (TYPE T)
TEMP RANGE	-40° to 200 °C (-40° to 400 °F)
ACCURACY	2%	±1%
HOUSING	Nylon Rod
WEIGHT	100g (3.5 oz)
DIMENSIONS	300 mm (12 in) Long 19 mm (.75 in) Diameter
POWER RATING	max 32 mW at 25 deg C (77 deg F) per Thermistor	0 Watts
CABLE	Custom lead cable length made to order: IC-02T-125 (24 AWG, 2 pair, drain wire, Teflon insulation and Jacket) IC-02-187 [22 AWG, 2 shielded pair, drain wire, red PVC jacket] IC-03-250 [24 AWG, 3 shielded pair, drain wire, black PVC jacket] IC-04-250 [24 AWG, 4 shielded pair, drain wire, black PVC jacket]	Thermocouple Type T wire 20-, 24- AWG solid wire with Neoflon FEP insulation cover for high-temperature performance.

Thermistor Temperature Tree

Thermistor Temperature Tree

SPECIFICATIONS – Temperature Tree
