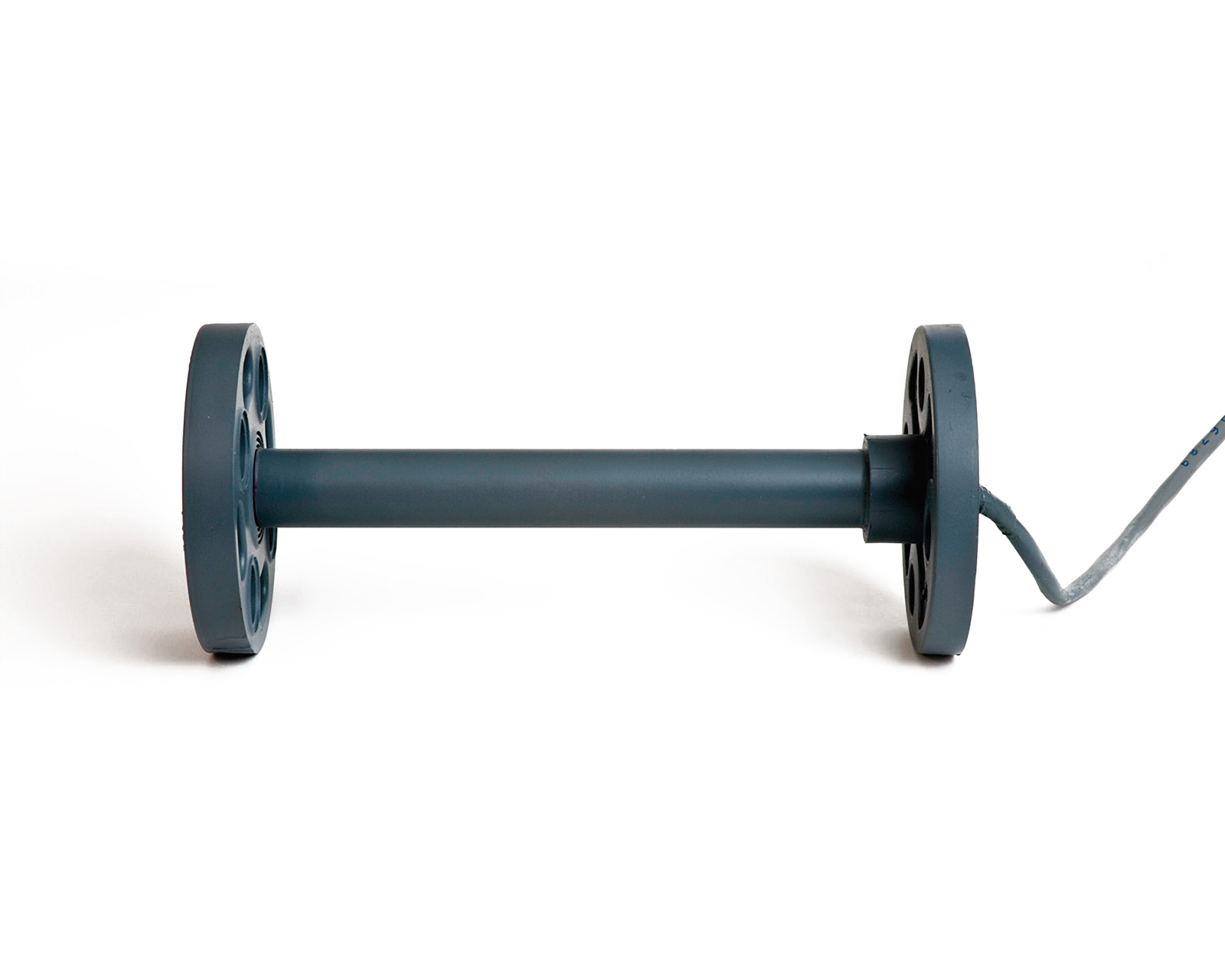

SCS Soil Compression Sensor

Soil Compression Gages (SCG) are pavement sensors that measure horizontal or vertical displacements in soils or subgrade material. SCGs are ruggedized to withstand the harsh environment in soils and construction fill material during placement and compaction.

They are moisture proof and can function to measure compaction or expansion of soils in various subsurface layers. Gages utilize displacement transducers over 1 to 6 inch travel ranges and can be used to measure dynamic response. Standard wiring configurations adapt to most data acquisition systems.

    • $
    • $
    • $
    • $
    • $
    • $

    Instrumentation Cable - 2 shielded twisted pair (22 AWG) with drain wire, 0.187" diameter, red PVC jacket.

    • $

    Instrumentation Cable - 2 shielded twisted pair (22 awg) with drain wire, 0.250" diameter, blue PVC jacket.

    • $
Specifications
Downloads
Options & Accessories

SPECIFICATIONS

MODEL

SCS-001 SCS-002 SCS-003 SCS-004 SCS-005
MEASUREMENT RANGE 1 in (25 mm) 2 in (50 mm) 3 in (76 mm) 4 in (102 mm) 5 in (127 mm)
RESISTANCE1 1,500 Ohms 3,000 Ohms 4,500 Ohms 6,000 Ohms 7,500 Ohms
EFFECTIVE GAGE LENGTH Customer specified (up to 24 inches)
EXCITATION VOLTAGE +1.0 to +30.0 Vdc
OUTPUT FSO proportional to Excitation Voltage
TYPE 3-wire potentiometer
LINEARITY 1%
POWER RATING
MAX:
TYPICAL:
INTELLIDUCER2:
300 mW
72 mW @ +5.0 Vdc
13 mW @ +5.0 Vdc
THERMISTOR (OPTIONAL)  3 kΩ – NTC
CABLE Custom lead cable length made to order:
IC-02-187 [22 AWG, 2 shielded pair, drain wire, red PVC jacket]
IC-03-250 [24 AWG, 3 shielded pair, drain wire, green PVC jacket]
TEMPERATURE RATING -40° to +176 °F (-40° to +80 °C)


1
Resistance tolerance ±20%
2 Intelliducer connector required with STS Intelliducer data acquisition nodes.
